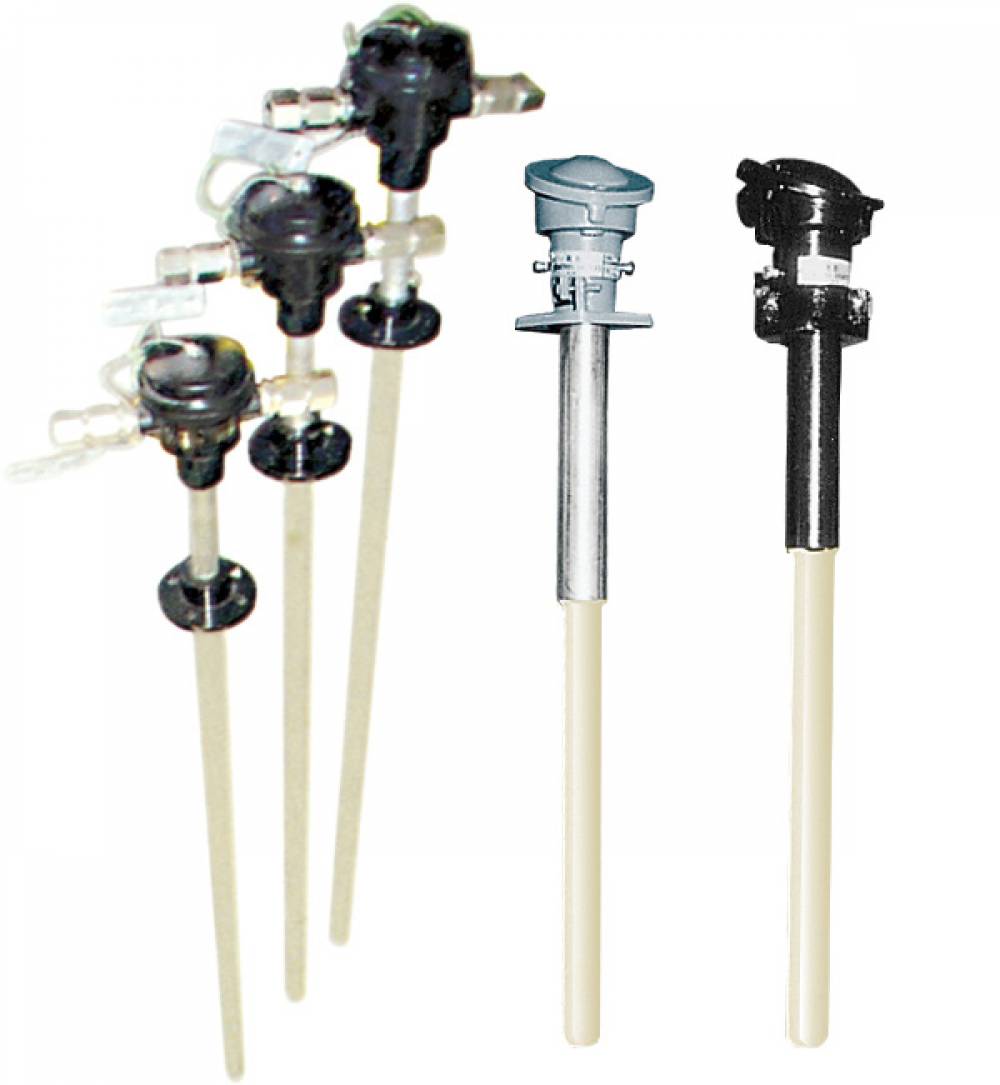

• Type ‘R’ (Pt. Rh. 13% - Pt.) & Type ‘S’ (Pt. Rh. 10% - Pt.) are used to measure temperature upto 1400ºC/1600ºC maximum.
• Type ‘B’ (Pt. Rh 6% - Pt. Rh 30% or Pt. 18) are for temp. upto 1800ºC max. Thermo element pair is protected by two or three ceramic sheaths of various types depending upon working temperature and environmental conditions.
• Ceramic protection tube Type KER 610 - with 60%, 80%, Al2O3.
• Type KER 710 - recrystalised - high alumina tube with 99.9% Al2O3 available in 24mm, 20mm, 15mm, 12mm, 10mm, 8mm, 6mm dia.
• Holding tubes made of SS 304/SS 316 of 32mm, 25mm, 20mm dia are used to hold ceramic sheath with head.
• Steatite Ceramic terminal block with nickle plated terminals.
• Die cast Aluminium/S.S. mounting head & adjustable flange.

Application

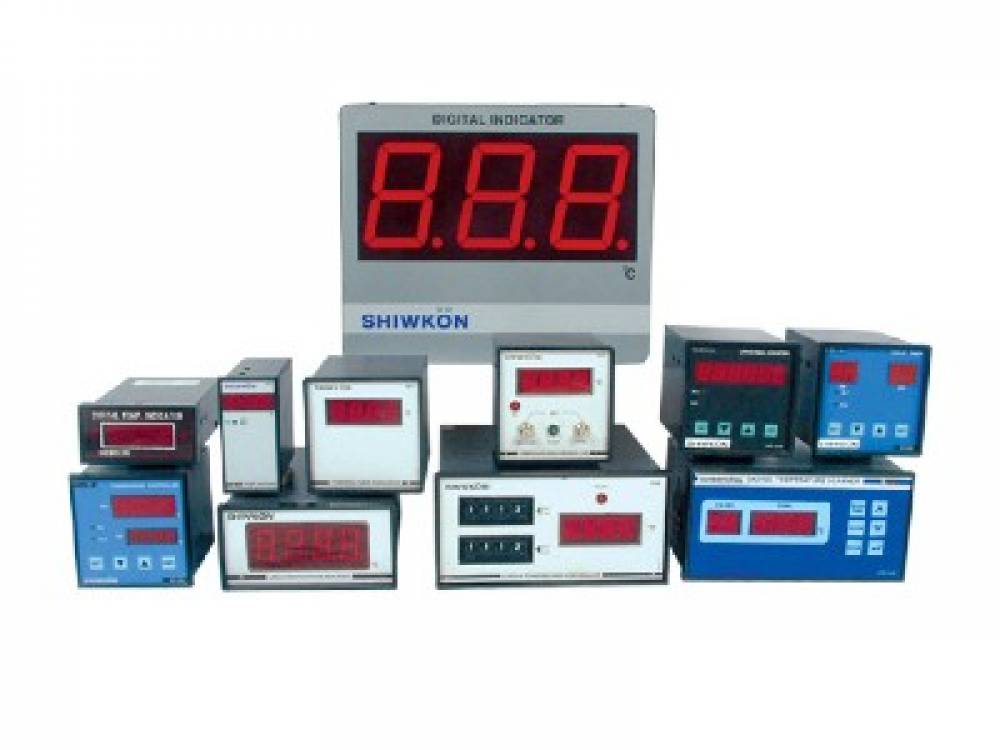

• Widest range of single/multi channel , linearised Temperature Indicators with micro controller chip with 0.5" , 1" , 2� , & 4" Display
• Digital on-off , Propostional , PD type temperature controllers with single/double set point having 5 Amp , 230 V AC relay output.
• Available in 48 X 96 mm2 , 72 X 72 mm2 , 96 X 96 mm2 , 96 X 192 mm2 size.
• Multichannel Temp. Scanner with 8 channel , 16 channel , 32 channel inputs
• Separate display for ch. No & temp., auto � manual switch and RS 485/RS 232 communication port.

Application

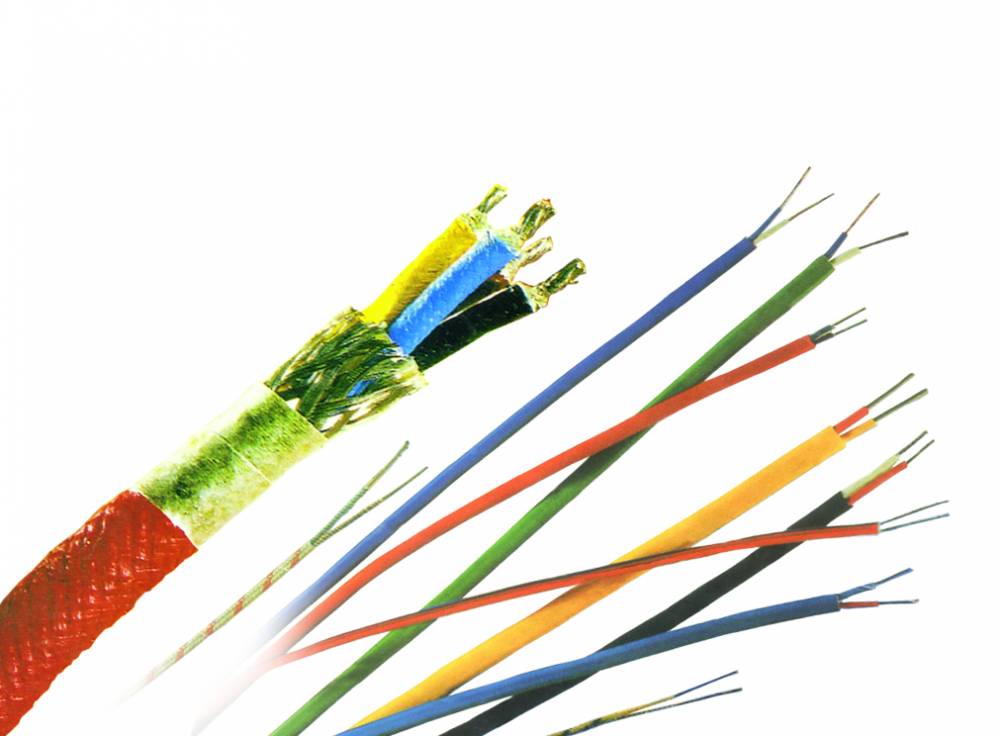

• Single pair to multipair armered/unarmered cable
• Insulation : PVC/PVC,Fiber glass /FG/SS(Shilded) , FG/FG/Asbestose,Teflon,Silicon Rubber,TRS etc.
• Conductor Size : 3/24 SWG , 3/26 SWG , 7/36,14/36 SWG etc.
• Heavy duty,rugged and easily available.

Application

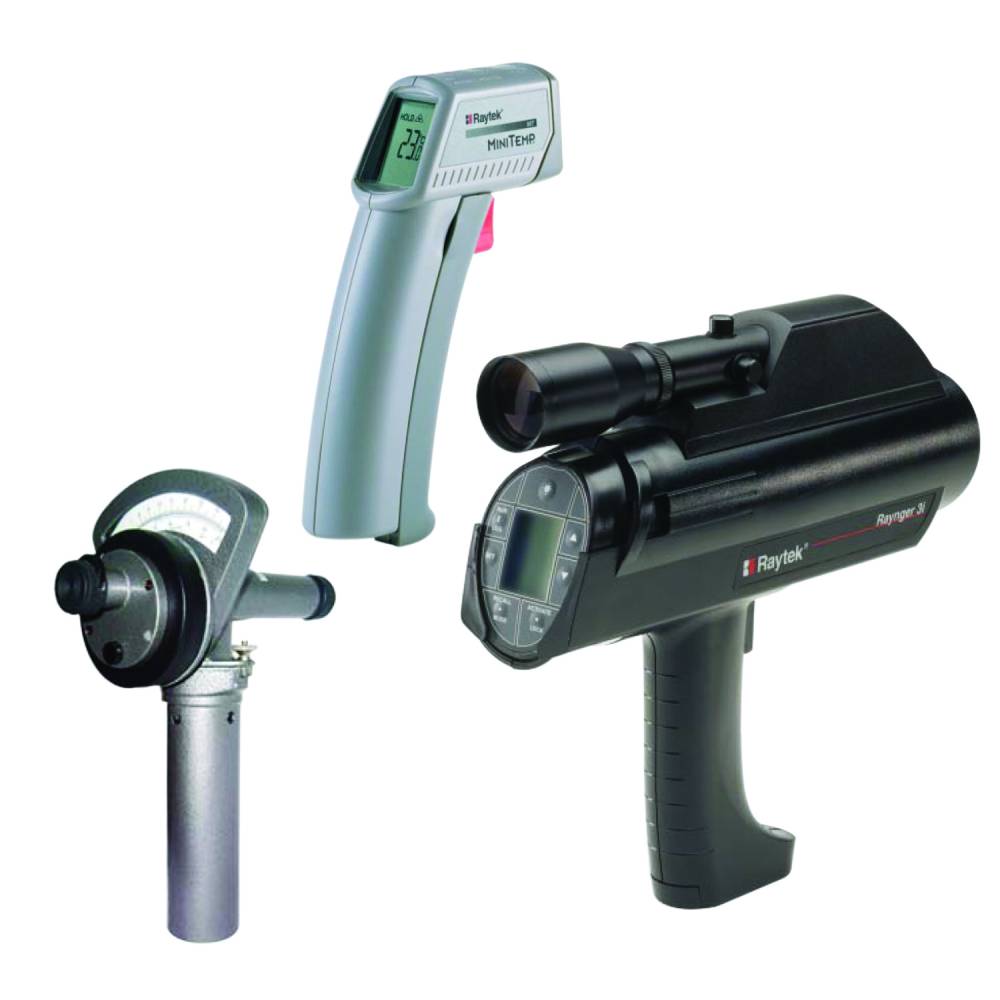

• Infrared Thermometer measure the surface temperature of an object. It�s optics sense emitted, reflacted and transmitted energy which is collected & focused on a detector. It�s electronics translate information into a temperature reading which is displayed on the unit.
• Portable Thermometers are available in Different Temp. Range : -30 to 400� c, -20 to 600� c, 0 to 800� c, 0 to 1000� c, 0 to 1500� c, 200 to 1800� c, 600 to 3000� c
• Low cost Disappearing filament type oprical pyrometer are avaible in 700 to 3500� c range.

Application

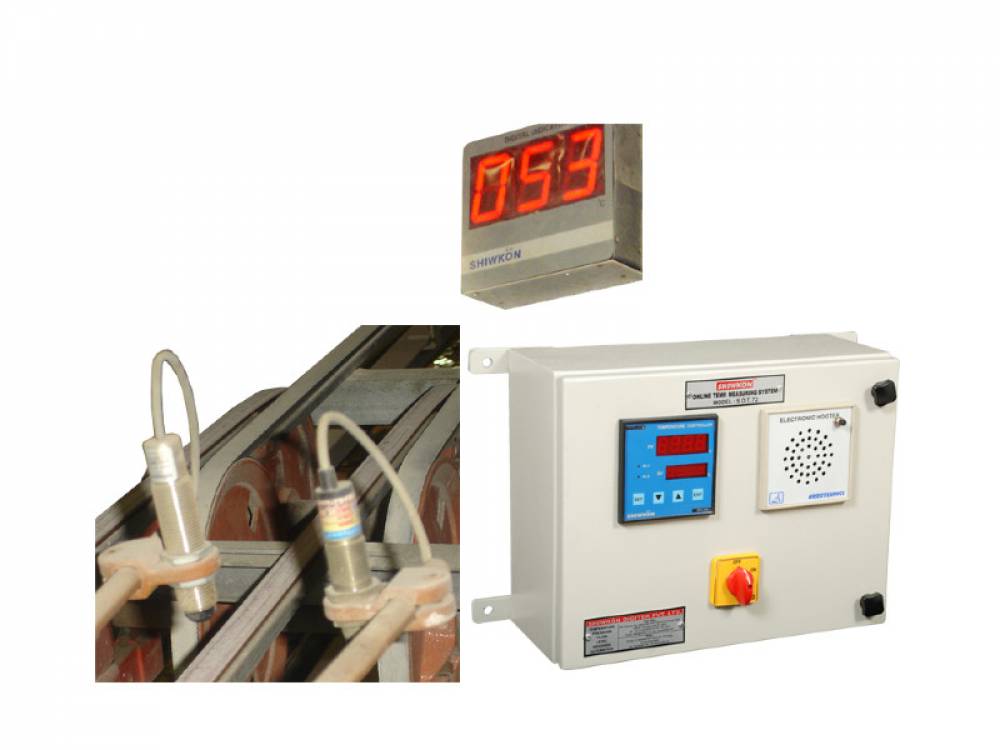

• Online temperature measuring system consists of Infrared Non Contact Temp. Sensor, object sensor, processing unit & extra large jumbo display
• Special design for fast & accurate temp. measurement of ceramic tiles.
• Infrared Sensor is activated only when object comes under it. Display shows temp. of only object.
• Models : SOT 54 : Temp. Indicating unit wih panel.
  SOT 63 : Temp. controlling unit with high & low set point.
  SOT 72 : control panel with buzzer for indication of high & low temp.

Application

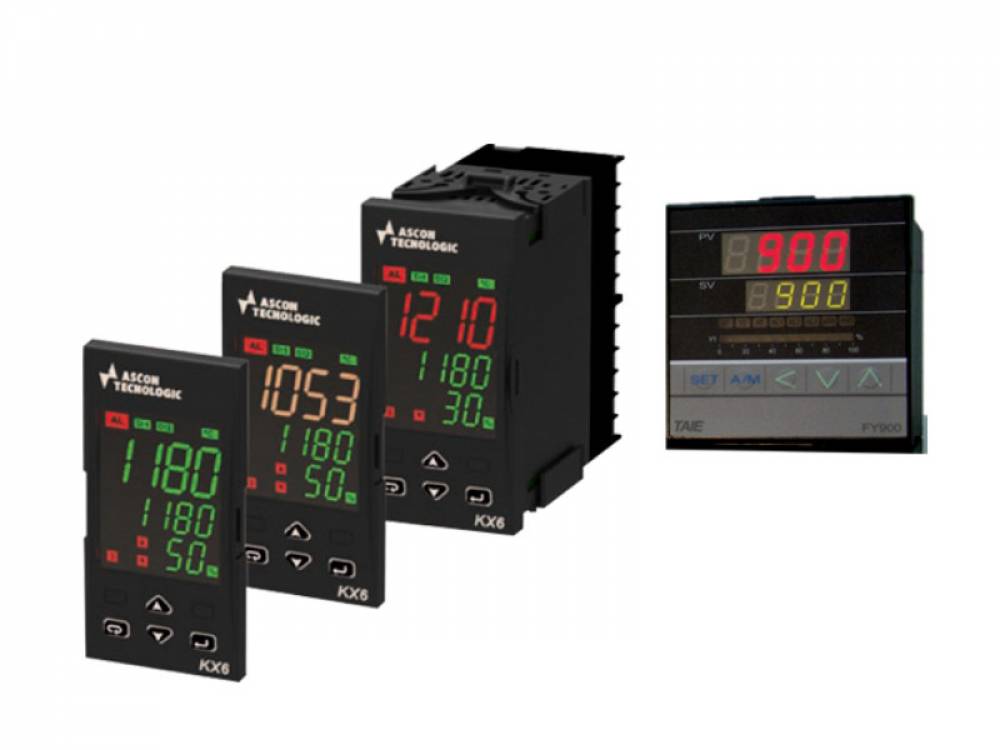

• Fuzzy Logic PID Controllers with Universal Input (Thermocouple / RTD / 4 to 20 mA)
• Control Output : Servomotor, On-Off Relay, 4 to 20 mA
• Alarm Output : upto two alarm, 230 VAC, 3 Amp Relay
• Additional features : Remote set point, Retransmission output, Serial Communication RS 485/RS 232
• Programmable profile controller with 16 segment Ramp �Sock program
• Size : 48 X 48 mm2, 48 X 96 mm2, 96 X 48 mm2, 96 X 96 mm2

Application

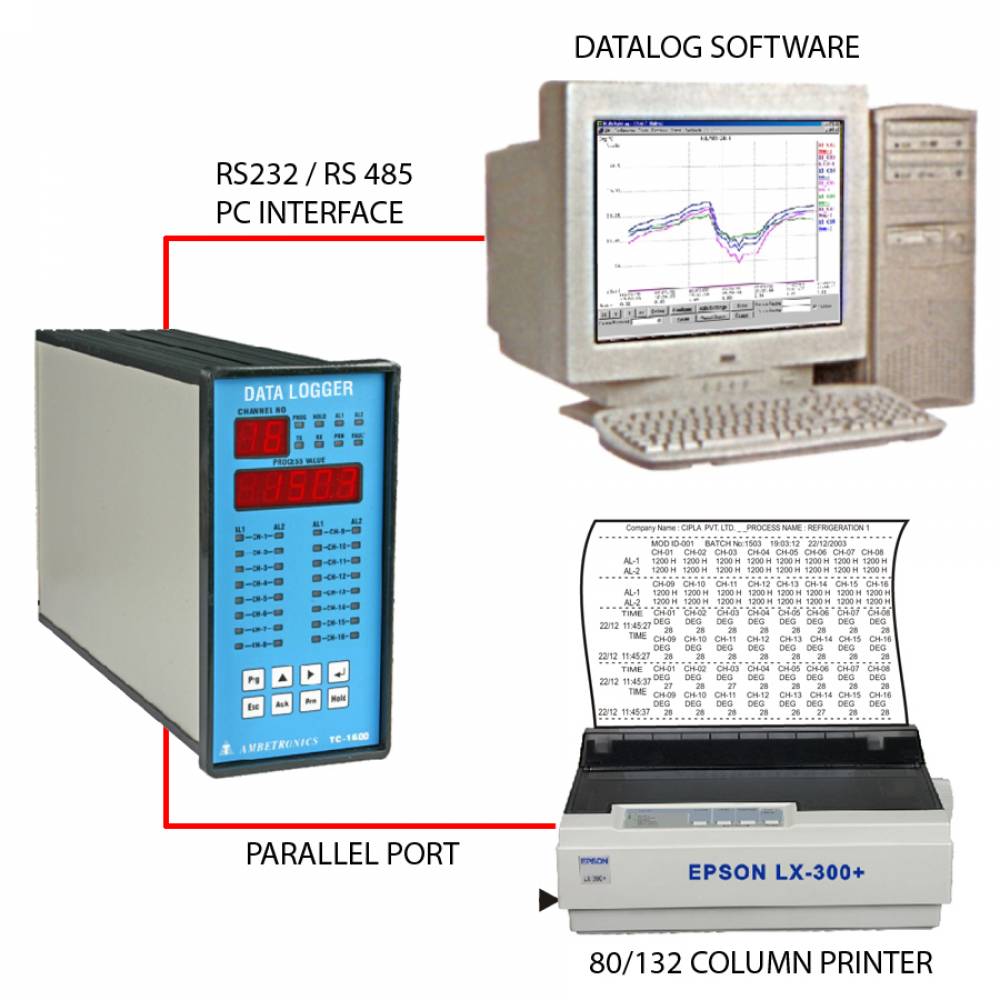

• Multi channel Data logger in universal fix type input with 8/16/32 channels
• Each Channel can store 3000 readings , 128 KB Capacity
• Parallel centronic port for direct printing
• RS 232 / 485 Serial port with modbus, RTD protocol
• PC Based Data Acquisition Software
• Historical Graph & online trend available.
• 24 Hrs. Format database available for excel report generation.
• Logged data is saved as different database
• System requirement : PIII, P4, 128/256 MB Ram 5 GB Hard disk Win 98/2000/Xp. 1 serial & parallel port, 1 CD-ROM , Color monitor(800 X 600)

Application

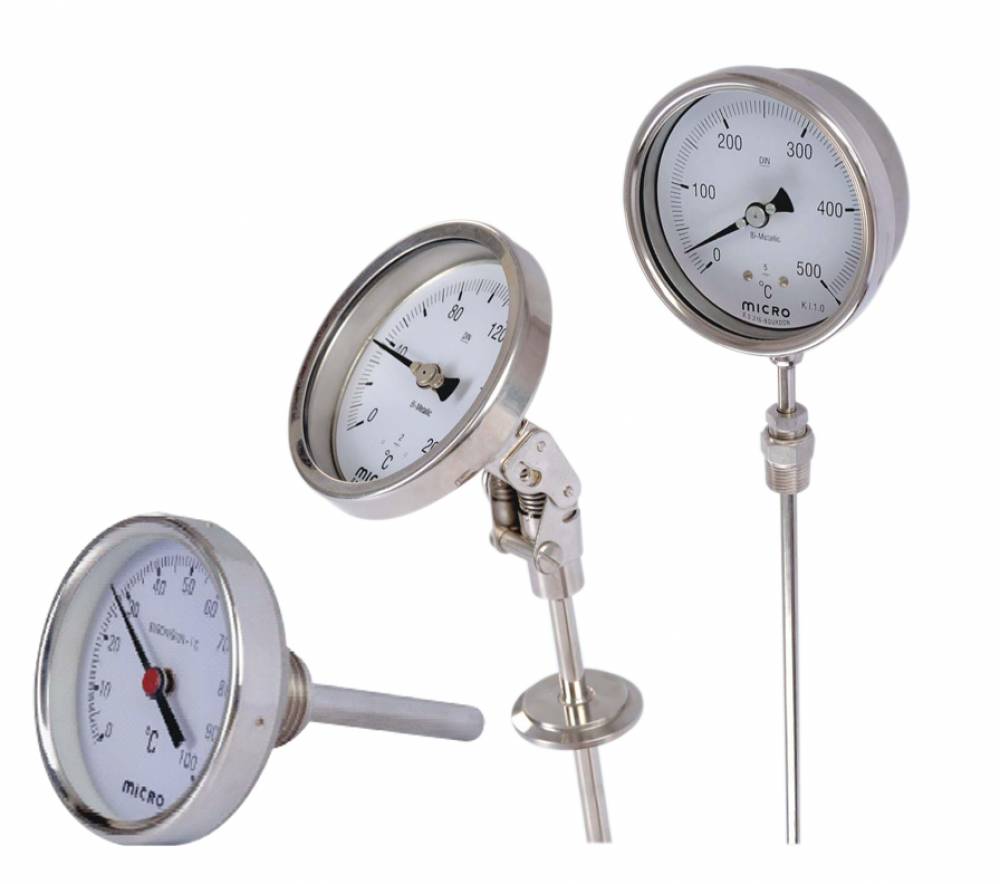

• Bimetal temp. gauges are economical, rugged, reliable temp. measuring instruments.
• Dial Size : 63 mm(2.5"), 100 mm(4"),150 mm (6")
• Accuracy : +/- 1.6 %
• Stem : SS 304, SS 316, up to 300 mm
• Mounting : Bottom , Back, & every angle
• Connection : ¼” , 3/8" , ½” , BSP / NPT (Fix or Adj.)
• Temp. Range : -30 to 50 to 500� c
• Thermowells suitable for all temperature gauges

Application

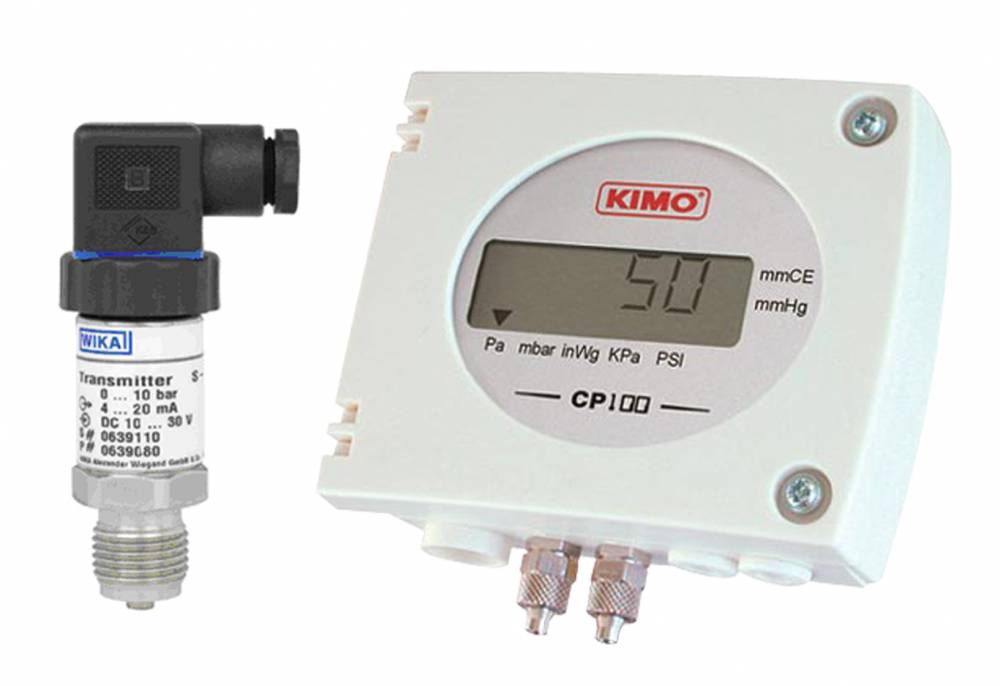

• Pressure Transducers are available in range of -2 bar to 2000 bar
• 4 to 20 mA,1-5 V,0-10 V with 2 Wire, 3wire signal output
• Highly Resistant to Pressure spikes & Vibration
• Differential Pressure transmitter with measurement range from -1000 to +2000 mtr
• ABS IP 65 housing with or without display

Application

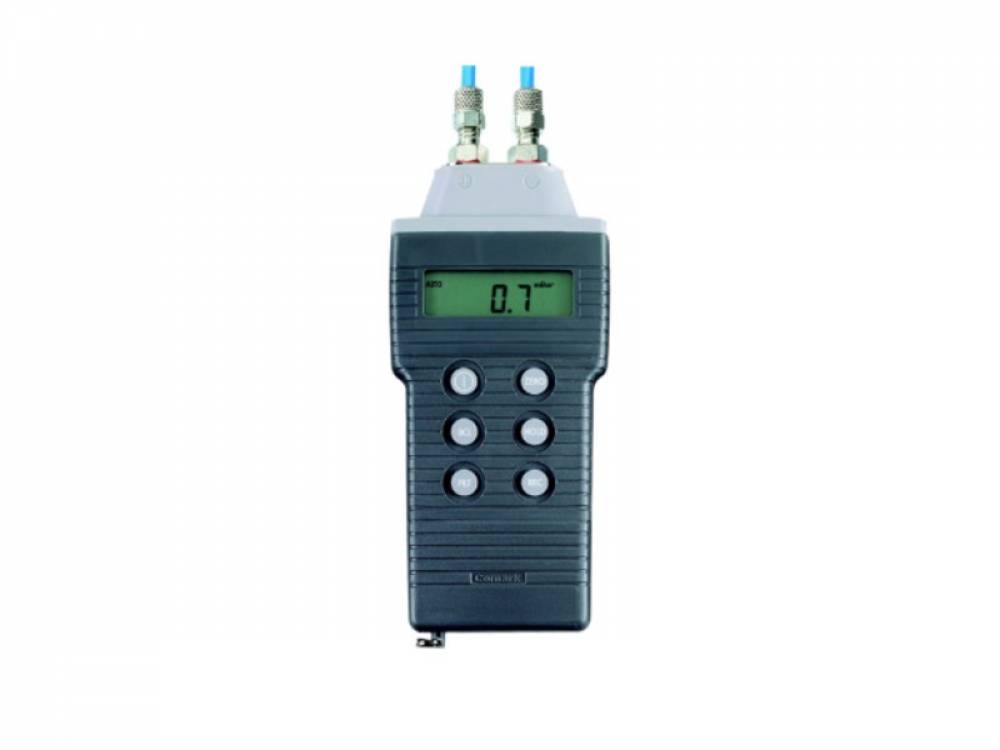

• Digital Manometer have twin inputs for gauges or differential Pressure & negative or positive (Vaccum) Pressure measurement.
• Selectable Pressure Units PSI , mBar , bar, in H2O, in Hg, mm Hg, Torr, Pa, Kpa, mm H2O, cm H2O, Kg/Cm2
• Adjustable Zero Value
• Max, Min Pressure & Hold Function
• Avilable in 0 to 1400 mm H2O (Accuracy : +/- 0.1 mm)
• Highly Accurate , Rugged instrument for high temperature Air up to 600 C With IP 67 Protective body

Application

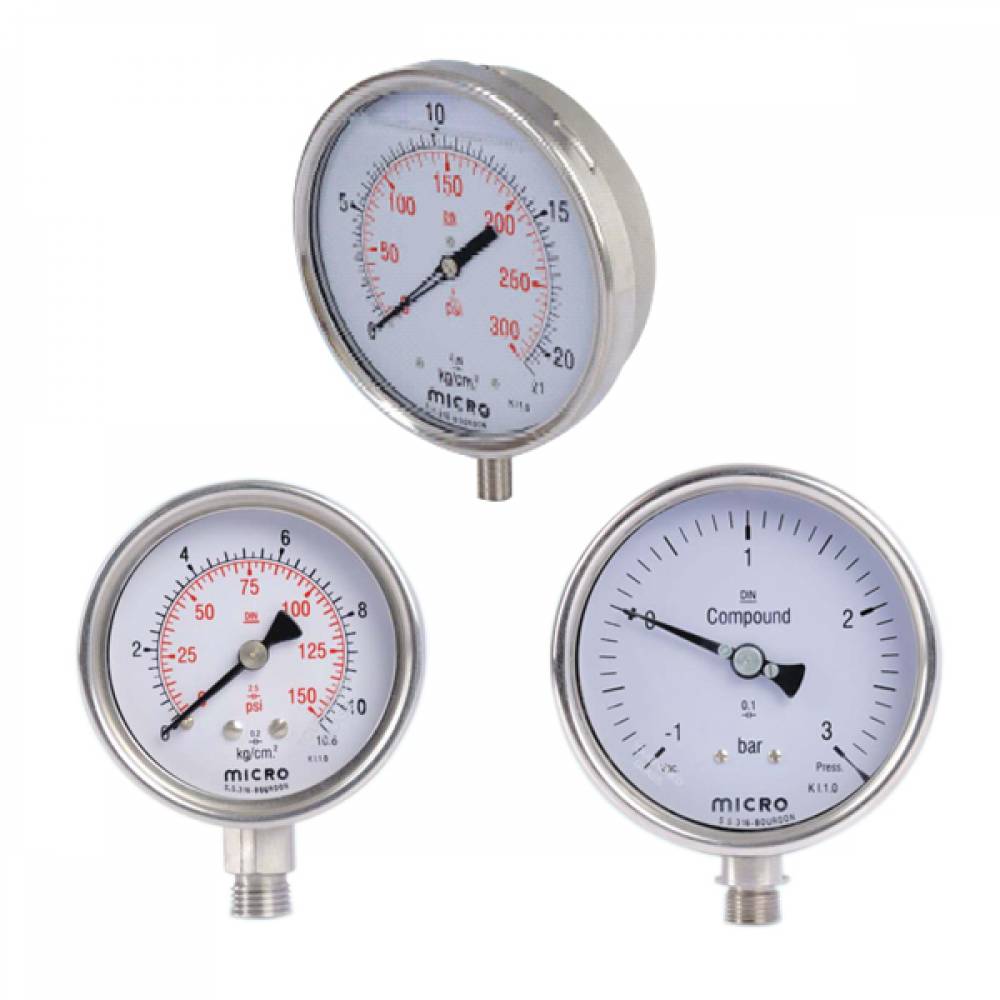

• Weather Proof Gauges for Corrosive environment
• Glycerin filled Pressure Gauges are ideal for dampening the effect of vibration & Pulsation
• Dial Size : 63 m(2.5") , 100 mm (4") , 150 mm (6") , & 200 mm(8") Accuracy : +/- 1.1 of Full Scale
• Movement : SS 304
• Dial : Aluminium white Painted with 270 degree black scale Marking
• Mounting : Stem ( Bottom ) , Surface , Panel Mounting , Flush panel (Bracket type)
• Connection : ¼”, 3/8", ½”, BSP/NPT
• Range : Vacuum , Compound & Pressure up to 1400 kg/cm2

Application

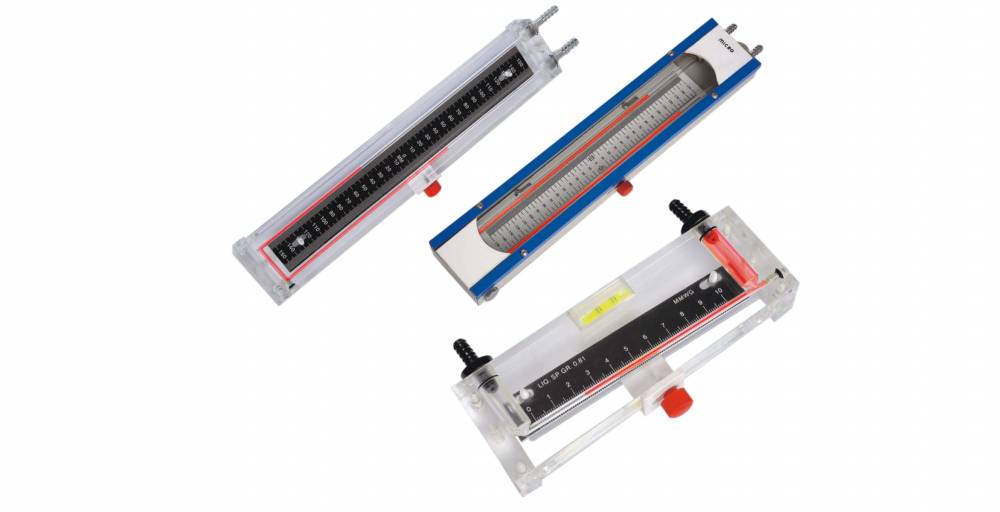

• Acrylic Single Limb Manometer. Std. range : 100, 150, 200, 250, 300 mm H2O
• Acrylic U tube Manometer for Precision Measure of Differential Pressure. Standard Range : 100-0-100, 150-0-150 , 300-0-300 mm H2O
• Acrylic U tube Manometer for easy reading of low pressure Standard Range : 10,12,15,25,50,75,100 mm H2O
• Glass body single limb & U tube manometer. Wall & Stand mounted available

Application

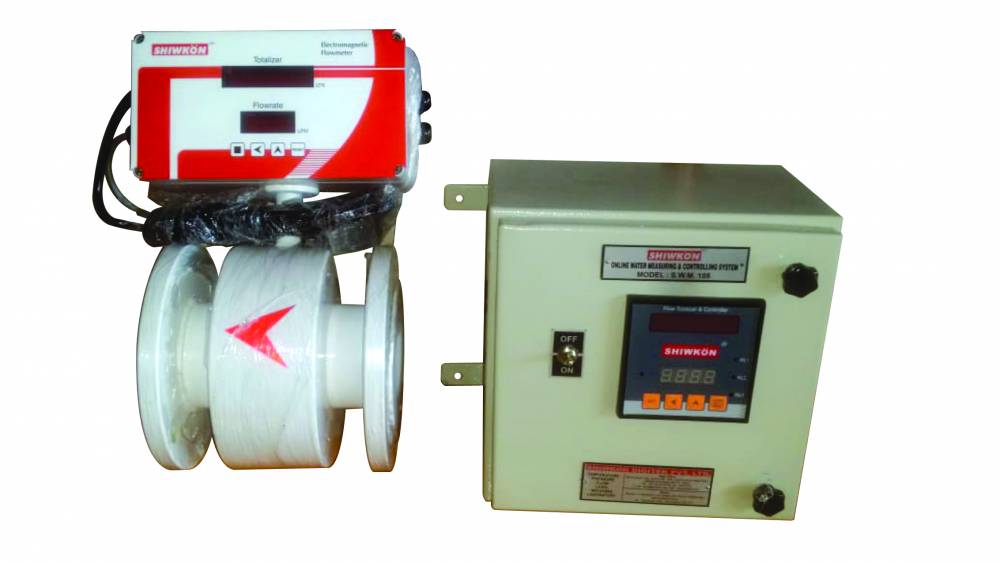

• Electromagnetic Flow Meter accurately measures the Flow rate of Conducting Liquid or slurries flowing in closed pipes.
• Line Size : 10 NB to 600 NB
• Output: 4 to 20 mA, with +/- 0.5 % Accuracy
• Lining Material: PTFE, Rubber
• ABS IP 65 housing with or without display
• Lining Material: PTFE, Rubber
• Digital Flow Totalizer with Flow rate indicator is available with control panel.

Application

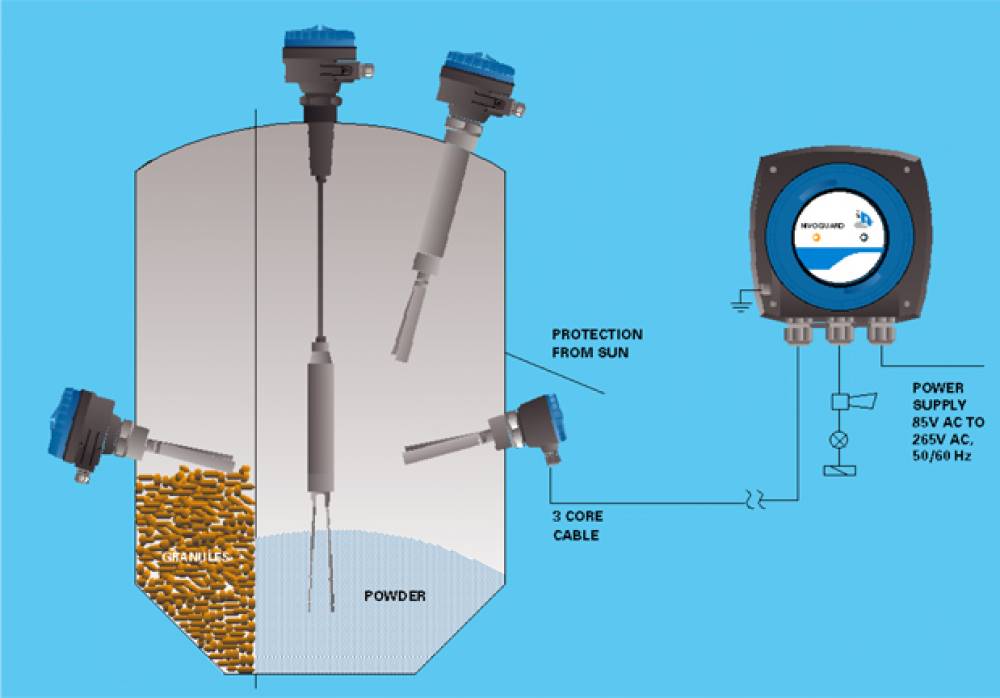

• Vibrating Fork Level Switch Specially designed for sensing presence of low Density dry powder or fine granular Solids
• Mains Supply: 85 V to 265 VAC OR 18 VDC to 30 V DC
• Output: LED, Relay , Open Collector
• Time Delay : 0 to 30 sec adjustable
• Fork: SS 316 material with max. insertion length 6000 mm
• Housing: IP 67 Cast Alluminium
• Digital Flow Totalizer with Flow rate indicator is available with control panel.

Application

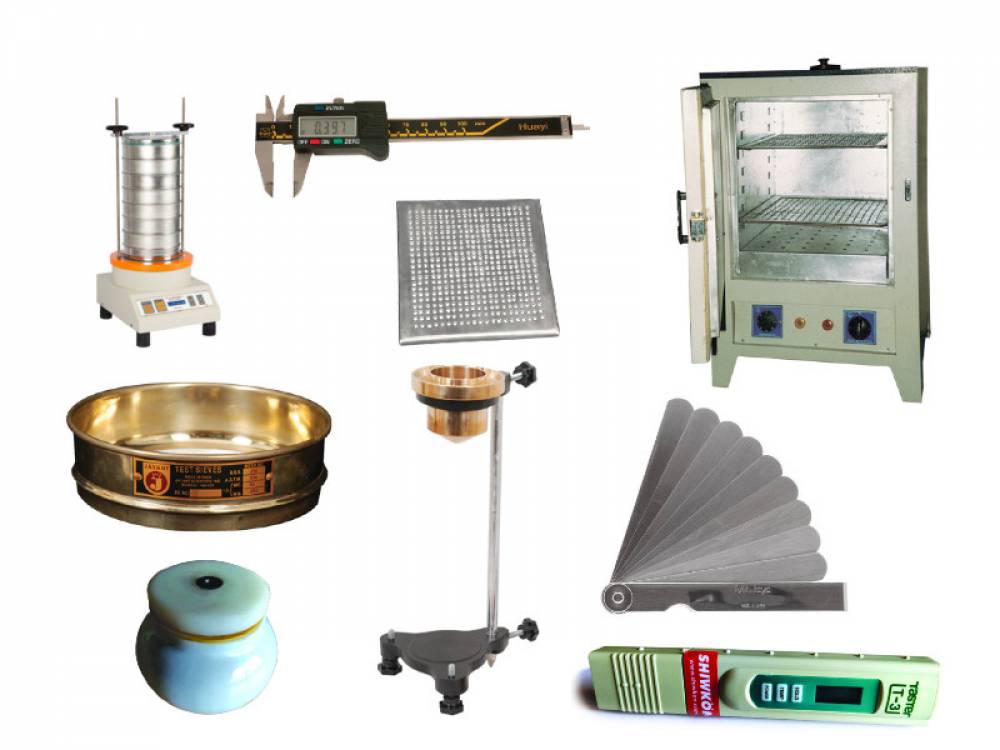

• Autoclave for crazing test
• Hot Air Oven
• Infrared Moisture Balance
• Flame Photometer
• Platinum crucible
• Rapid Pot Mill
• High Alumin Pot (500CC, 1000CC)
• Water Absorption machine

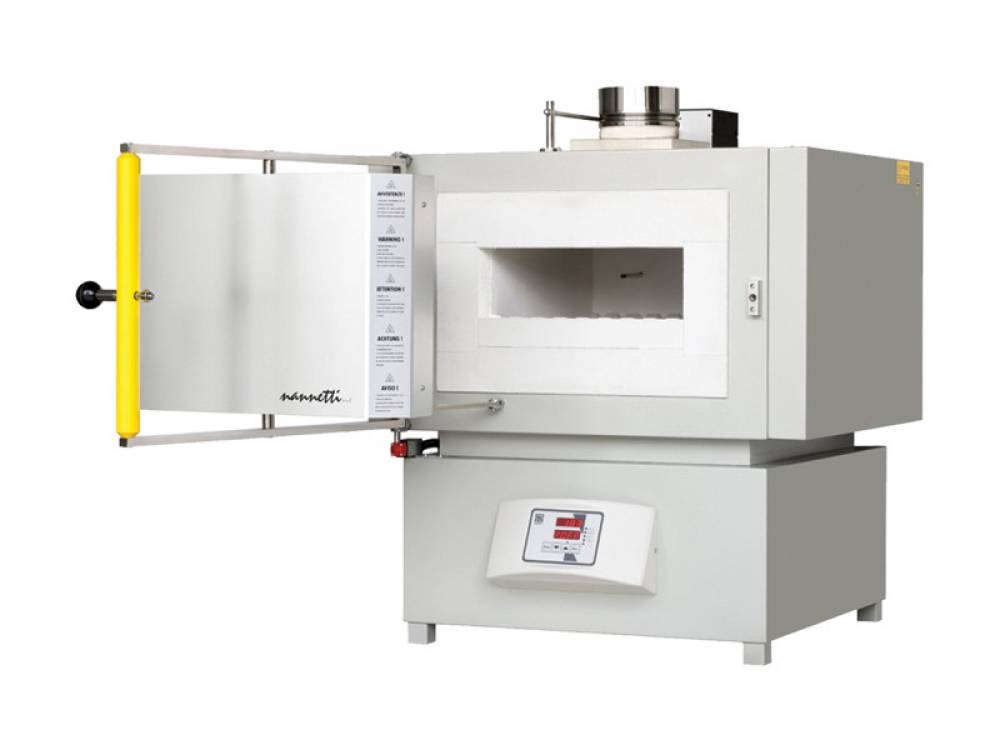

• High Temperature Muffle Furnace
• Electro magnetic& Gyratory Sieve Shakers
• Manual & Automatic Button Press
• Lab stirrers
• Hot Plates (Ractangle& Round)
• Moh’s hardness pencils & kit
• Rectangle Bar to check tiles straitness
• Filler Gauge
• TDS & PH Meter
• Ford Cup (viscometer) - B4, B6, B8 &
• Density Bottle (100 CC)
• Stopwatch (Digital & Analog)
• High Temp. Sample Plates (250 x 250mm,300 x 300 mm, 400 x 400mm)
• Vernier Calipers& Dial Gauge
• Glassware & Plasticware

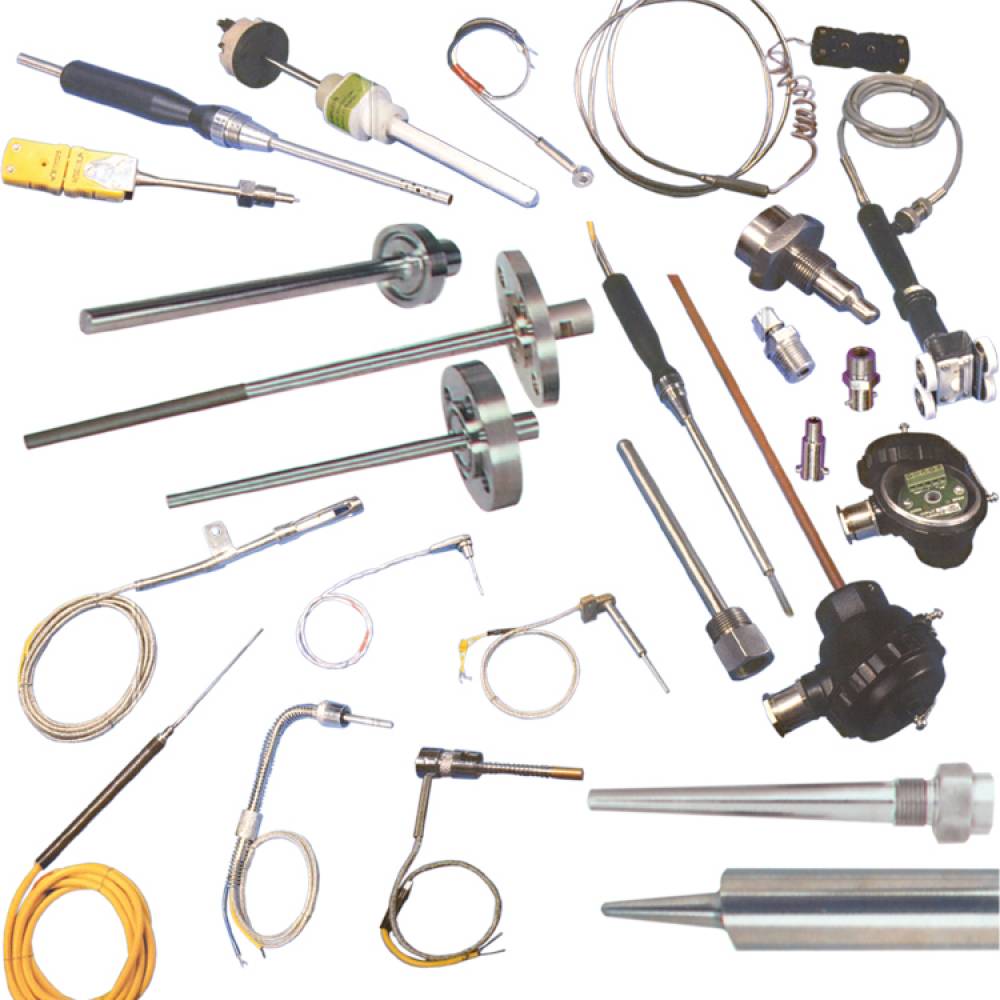

• Thermocouple type ‘K’ (cromel alumel or Cr.Al or Ni.cr-Ni) are temperature upto 1000°C /1200°C maximum.
• Thermocouple type ‘J’ (iron-constantant or Fe-K) for temperature upto 800°C.
• Resistance Temperature Detector (RTD) type (PT-10, PT-50, PT-100, PT-200, PT-1000 & CU-53) to measure temperature from -400°C to 600°C.
• All sensors available in metalic protection sheath & Thermowell made of SS 304, SS 316, SS310, HRS 446, inconel 600/800 with insulation by ceramic beads,hand-filled mgo & MI.

Application

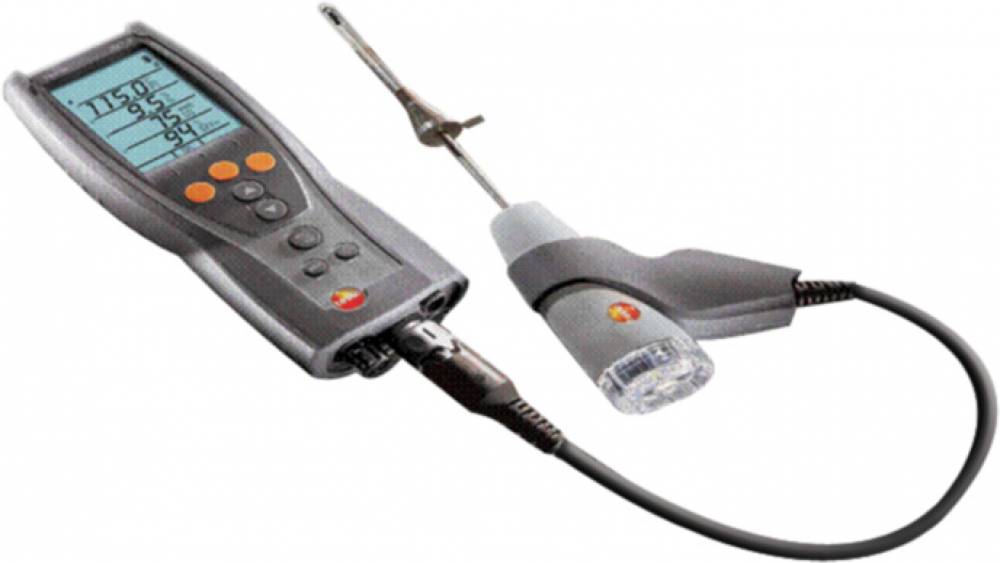

• Includes all basic functions such as combustive efficiency, flue gas loss, O2, CO2
• CO and flue draught, temperature
• Stable readings in 30 se
• Built in condensate trap, chargeable lion batter
• Ambient CO & O2 dual wall measurement

Application

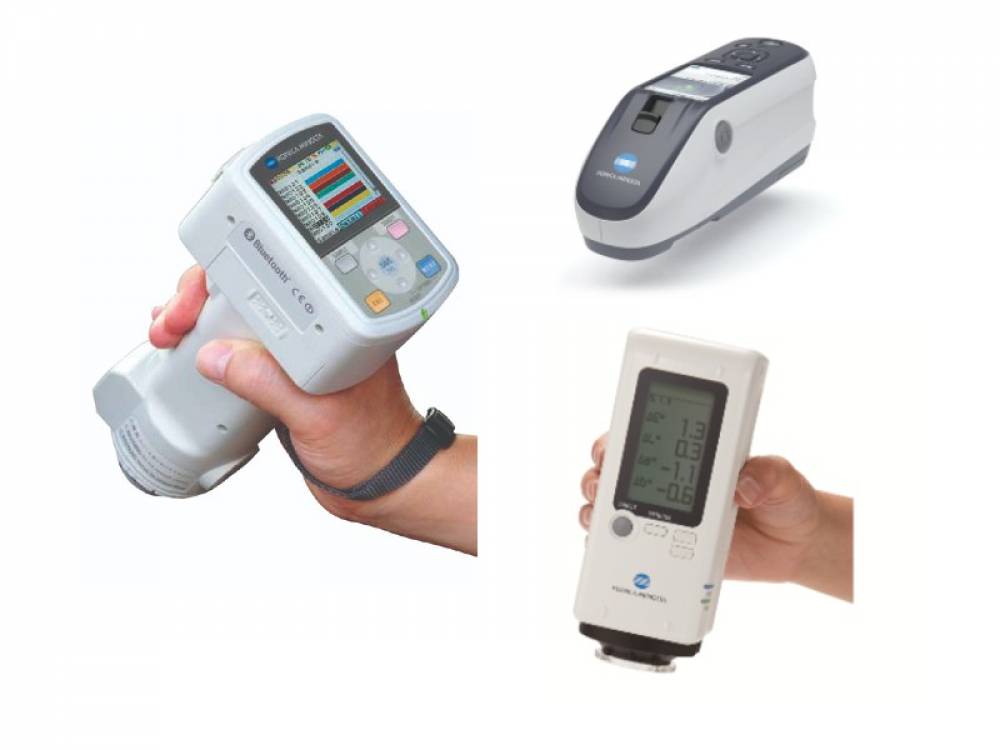

• Laboratory Equipments& Analytical Instruments KONICA MINOLTA Spectrophotometer &ColorReder Highest level of accuracy, inter instrument agreement and repeatability inindustry.
• CM 25d is the latest high performance portable spectometer popular in ceramicindustry with color LCD screen.
• It has 8mm target mask, repeatability within 0.04 &interinstrument agreementwithin DE*ab 0.20. CM 600 is handheld field-oriented spectrophotometer specially used for curvedsurface.
• It is compact, lightweight spectrophotometer with wireless communication andcolor LCD screen offering excellent portability and operability.
• CR 10 Plus is lightweight and compact color reader which shows color difference between your target and samples in an instant.
• It has large B/W easy to read display with just three step operation.

•  A laboratory kiln with which it is possible to simulate the entire firing curve of a continuous industrial kiln.
•  It can be programmed both for heating and for cooling, obtaining cycles with a heating time of about 27 minutes to arrive at the maximum temperature of approx. 1300°C. and a cooling time of about 16 minutes to arrive at a temperature of about 300°C.
• The kiln structure is made of steel, stove-enameled with epoxy-paints, and is thermally insulated with ceramic fibre and low density refractory bricks.
• The temperature and the firing curve are controlled by a microprocessor based controller, model K1PX, with which it is possible to program 4 cycles of 8 steps each.

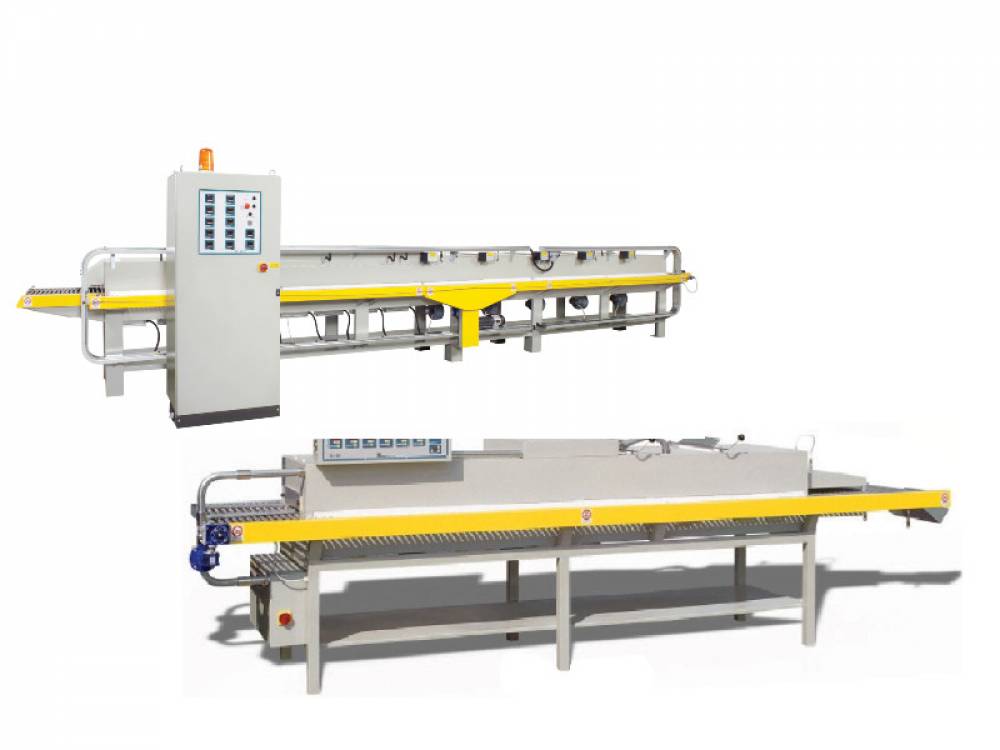

The kiln consists of a sturdy steel structure, which encloses the thermal insulation, consisting of low density refractory bricks and preformed ceramic fibre sheets, highly resistant to high temperature andthermal shock.

The kiln has several zones with different characteristics, viz.:

• Entrance and smoke evacuation zon
• Preheating zon
• Firing zon
• Cooling zone.

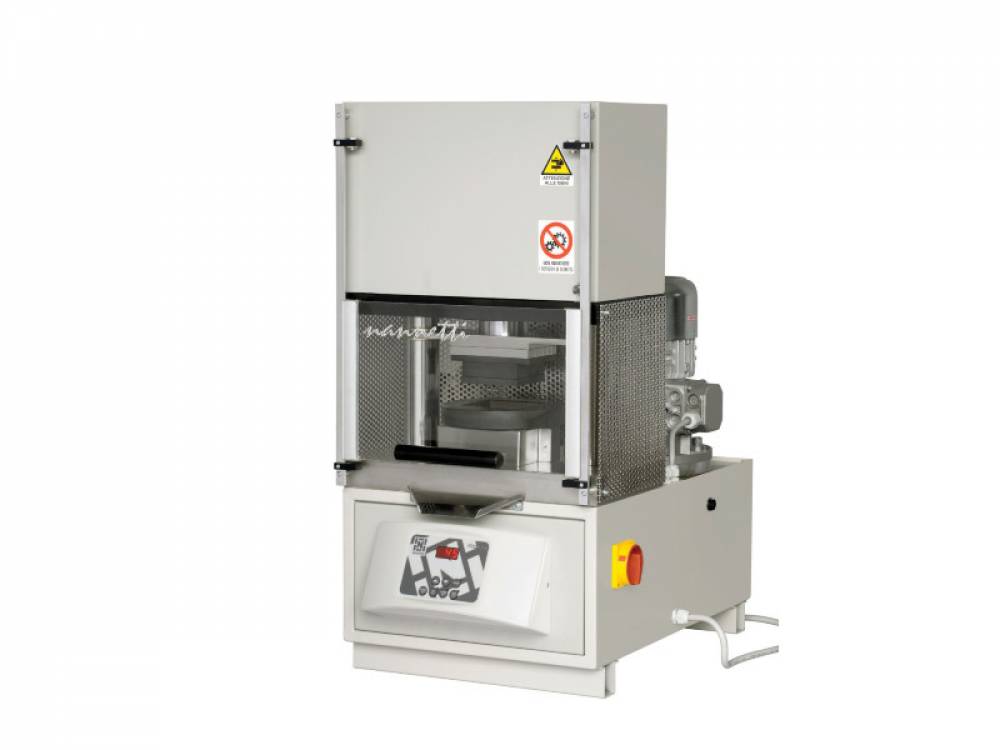

• An hydraulic extracting unit
• A digital pressure indicator
• Electronic pressure control
• Electronic regulation of the thickness of three layers of powder, i.e. the possibility to press three types of powder at the same time and electronically control the thickness of the layers in the mold.
• control of the residence time at the preselected maximum pressure.
• Deaeration control
• Control of the residence

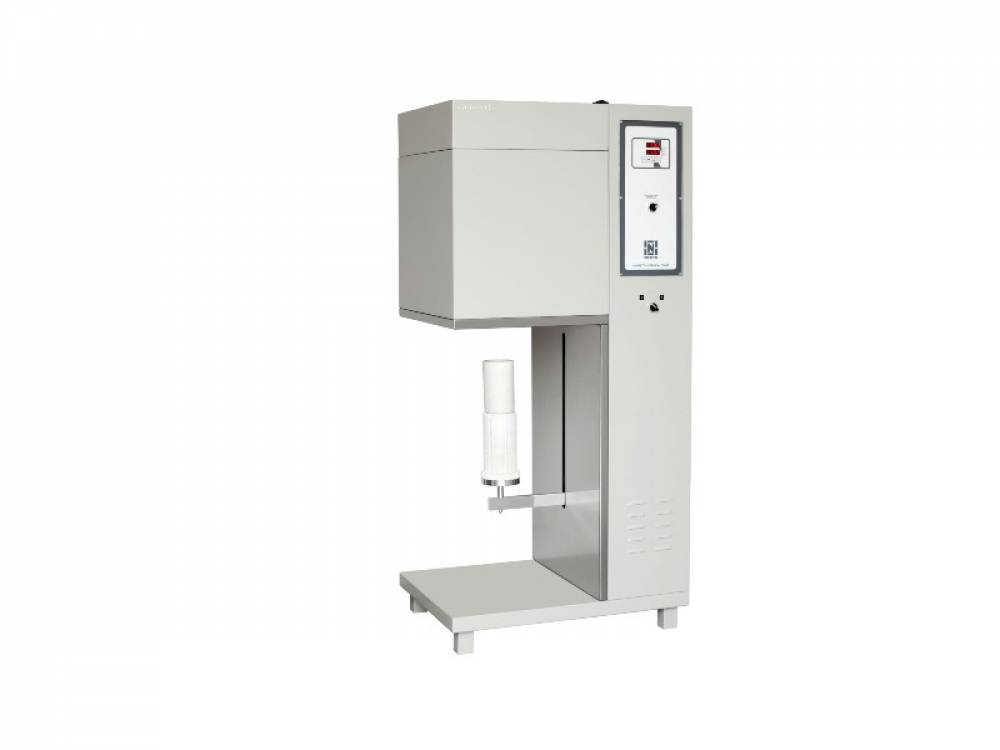

 A laboratory melting kiln with a movable crucible, that is, the bottom of the kiln, where the crucible is located, is movable. At the moment that the mixture will be molten, one lowers the bottom of the kiln with the crucible by means of an appropriate mechanism. At this point one takes the crucible by means of adequate tongs and pours the molten mass in a container with water.

The quantity of the mixture that can be molten is approx. 600-1000 g. at a time.

The structure of the kiln is made of steel, stove enameled at 180°C. with epoxy paints.

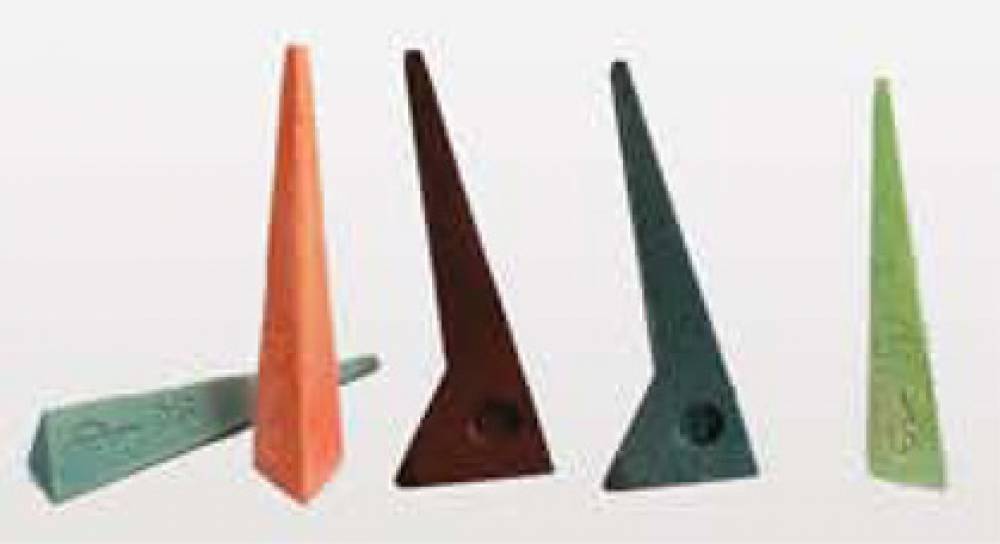

• Pyrometric cones are a globally recognized visual indicator of heatwork (the effect of time andtemperature) achieved during the firing process.
• Cones provide assurance that the level of heatwork required to develop the critical attributes of ceramic products have been successfully delivered.
• They not only can be relied on during the firing process but also used as a permanent record of the heatwork produced inside the kiln.
• Cones should be an integral part of your quality assurance program.

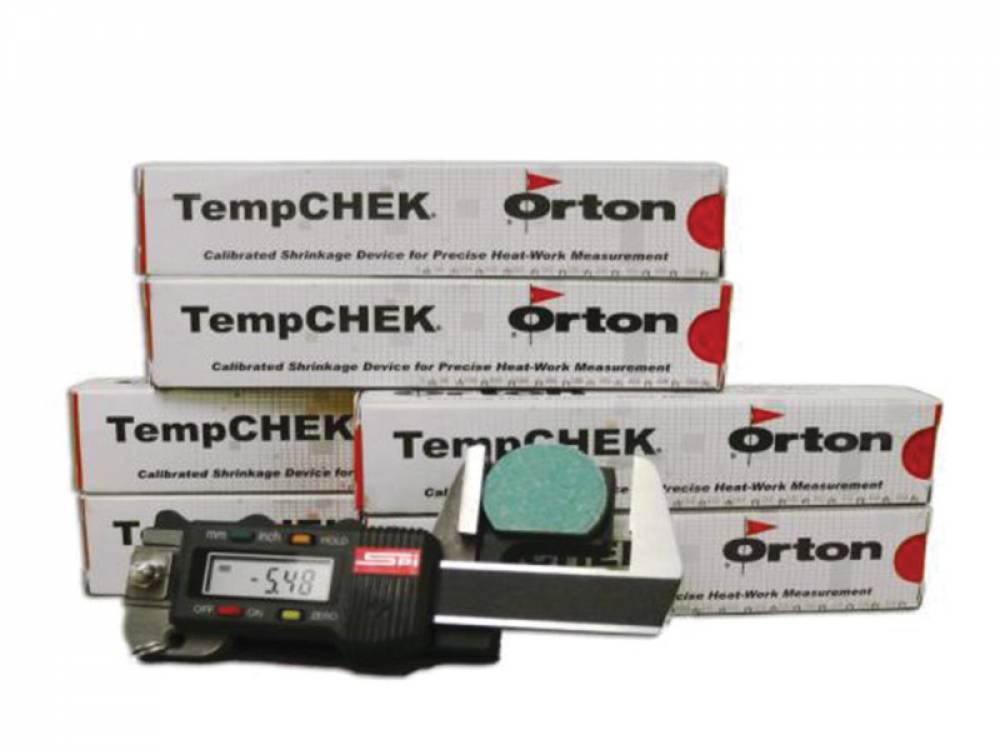

• TempCHEK is high quality pyrometric shrinkage product used to determine temperature or temperature differences within kilns.
• TempCHEK is measured after firing to the nearest 0.01 mm.
• Using table supplied by Orton with each batch, the fired width can be used to determine an equivalent temperature.
• TempCHEK is an excellent alternative for measuring firing conditions in kilns where space or operating conditions make the use of Pyrometric Cones impractical.

• TempTabs are used to monitor and record the heatwork produced ( the effect of time and temperature) inside kilns. They are especially helpful in monitoring fast fire process or processes which cannot tolerate out gassing.
• TempTabs are made from a blend of material that exhibit predictable dimensional change (shrinkage) over a relatively wide temperature range (200-300°C) and have undergone additional processing to remove any volatile materials.
• Each batch of TempTabs is carefully calibrated to provide reproducible information from batch to batch.

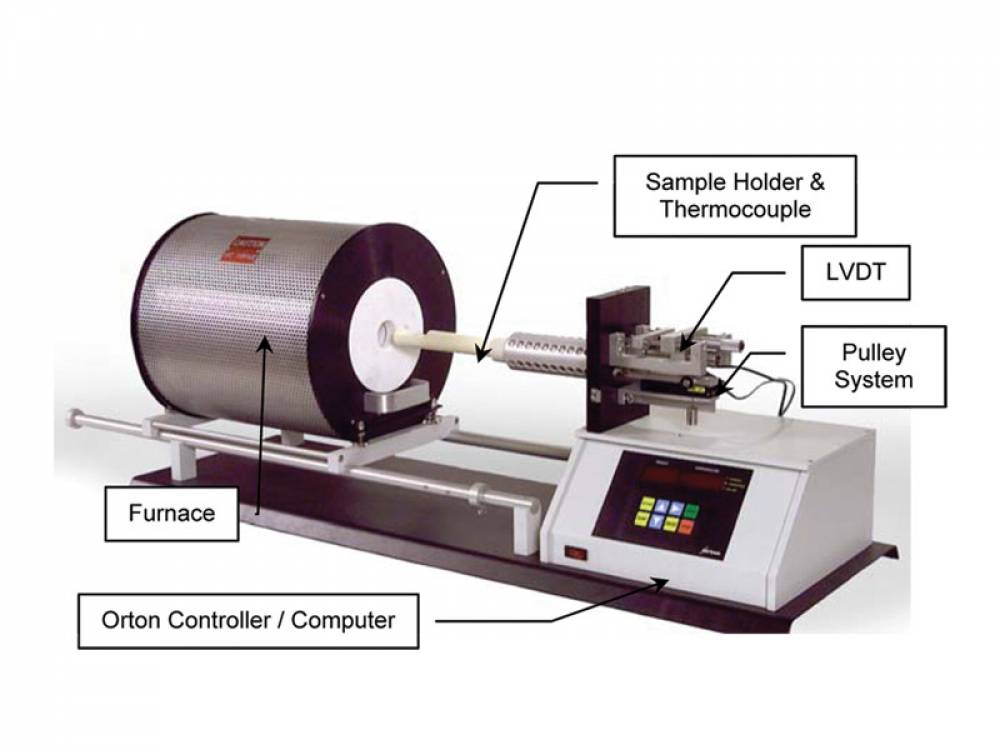

Orton dilatometers are designed to measure the dimensional changes of ceramics, glasses, metals, carbon composites, cermets, minerals, and polymers as a function of temperature. The dilatometer records reversible and irreversible changes in length (expansion and shrinkage) during heating and cooling. Samples are measured for determining firing ranges and firing schedules, measuring thermal expansion ranges for glaze fits, and measuring thermal expansion ranges for R&D, QC or product certification. Orton standard dilatometers are used for ASTM E-228, C-372, and other testing procedures to measure the Coefficient of Thermal Expansion (CTE), softening point, glass transition temperature, curie point, crystalline transformation, phase transition, shrinkage, warping, bloating, sintering rate, isothermal creep, stress relaxation

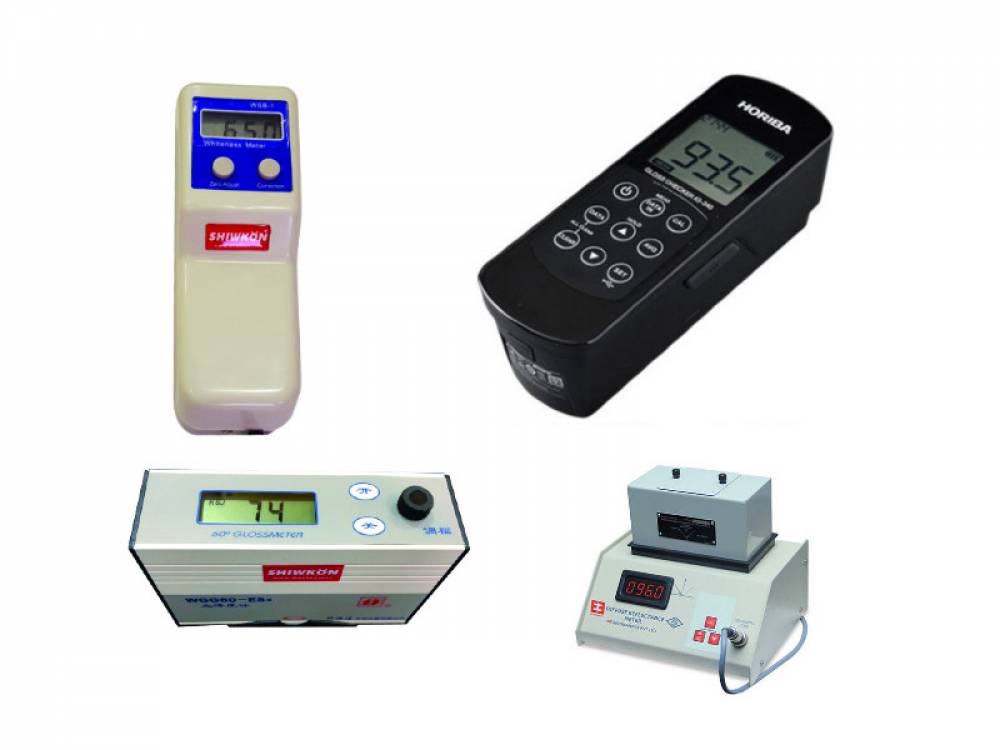

• IG 340 is latest highly accurate Gloss Meter from HORIBA, Japan. It is with large display, data output via usb connection with 0-100 measure range & accuracy 0.5% of FS.
• ES4 is low cost Gloss Checker from KSJ, China with 0-200 measure range.
• WSB - 1 is portable whitness meter with zero adjustment & correction knob.
• SW-DRM is Table Top whiteness meter (diffuse reflactance meter) with long life tungstan lamp. Range 0-100 and ± 1% accuracy. It comes with standard green filter.
